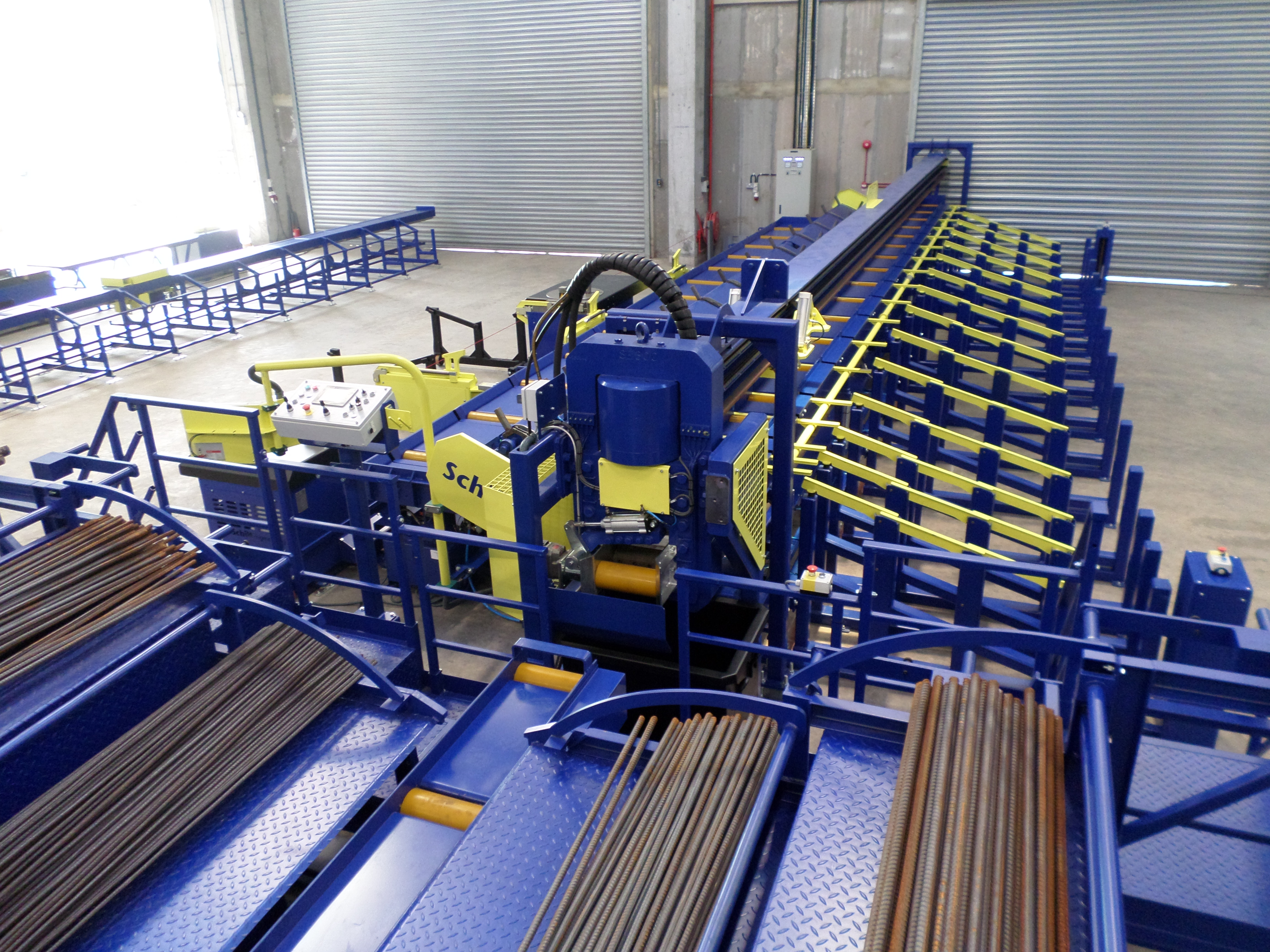

Flexbar 150/300-DAE automatic rebar shearline

Rebar shearline with automated length stop and double-sided ejecting, processing of bars from Ø8mm up to Ø50mm

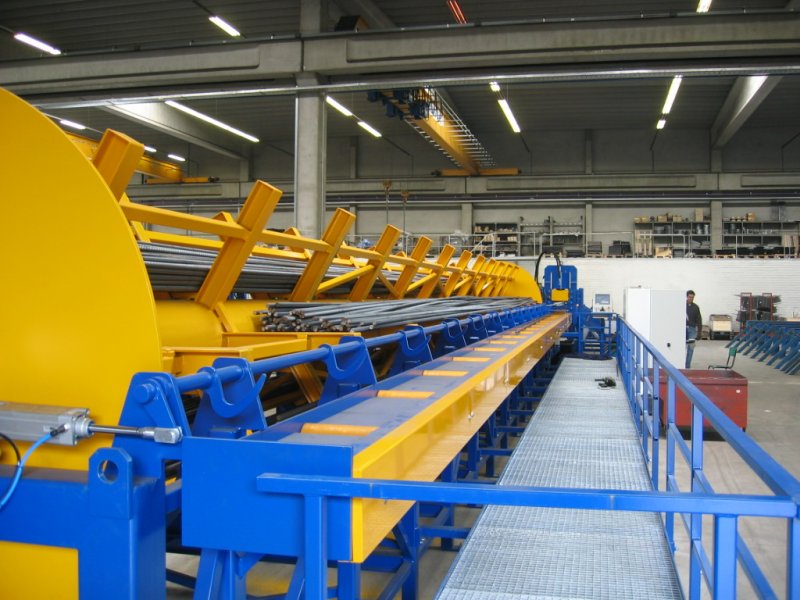

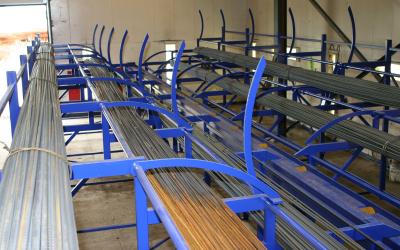

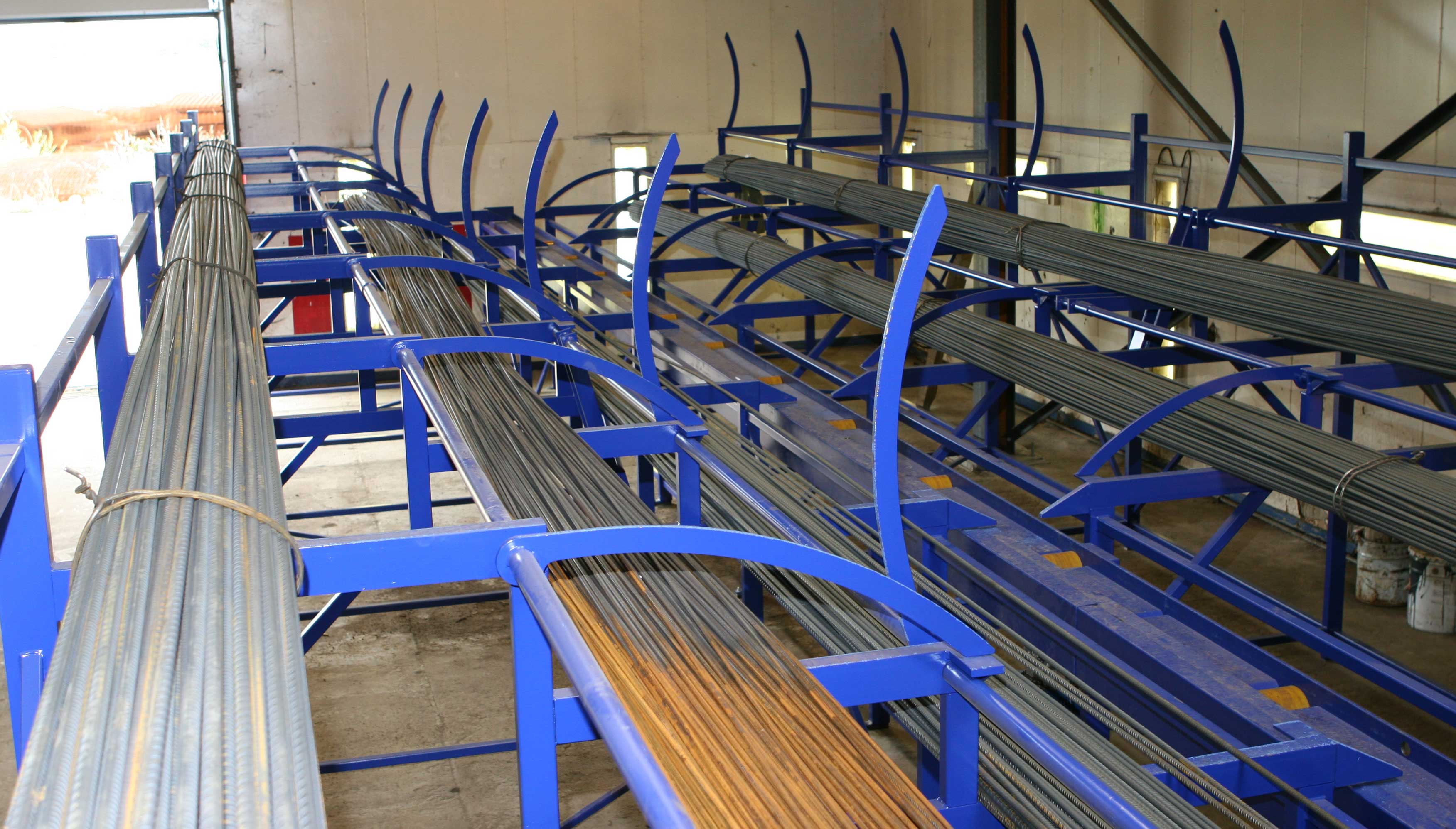

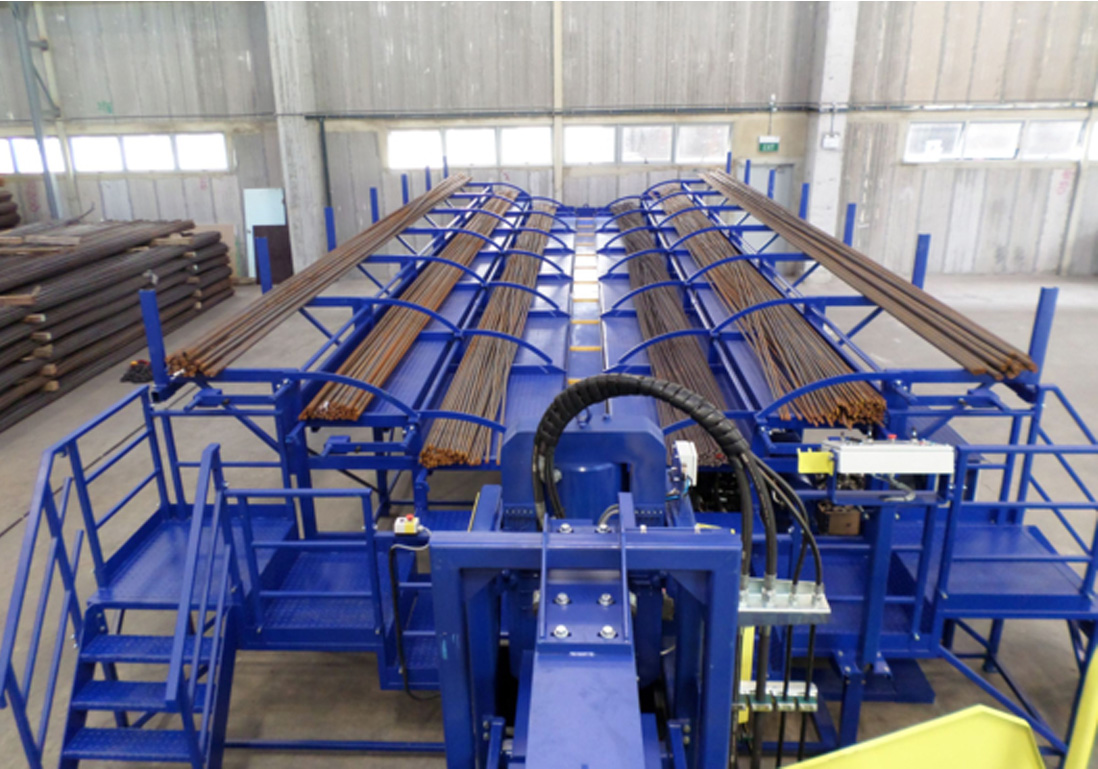

Active storage rack for rebar with 1 or up to 6 levels
Electrically driven entry conveyor with coated rollers

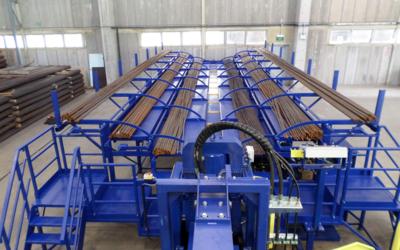

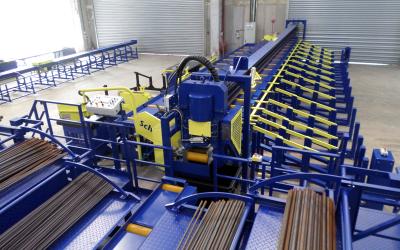

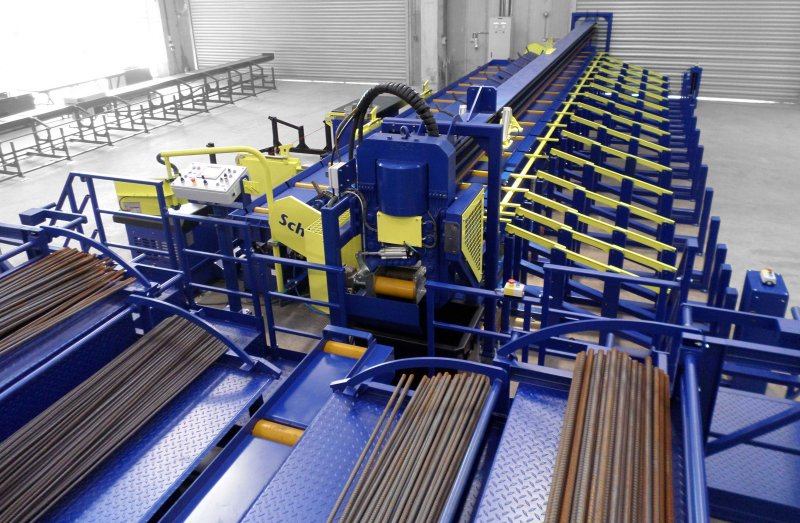

Hydraulic rebar cutting machine with 150mm or 300mm blade width

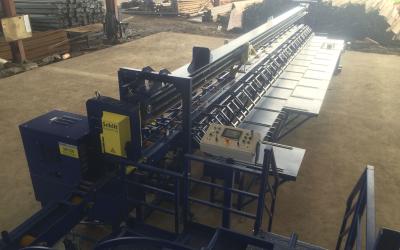

Automatic length stop (cantilevered construction) for precise cutting length adjustment

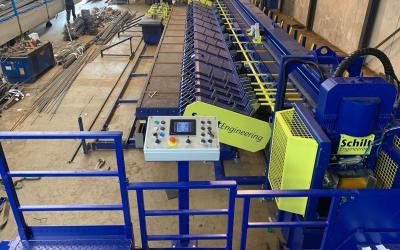

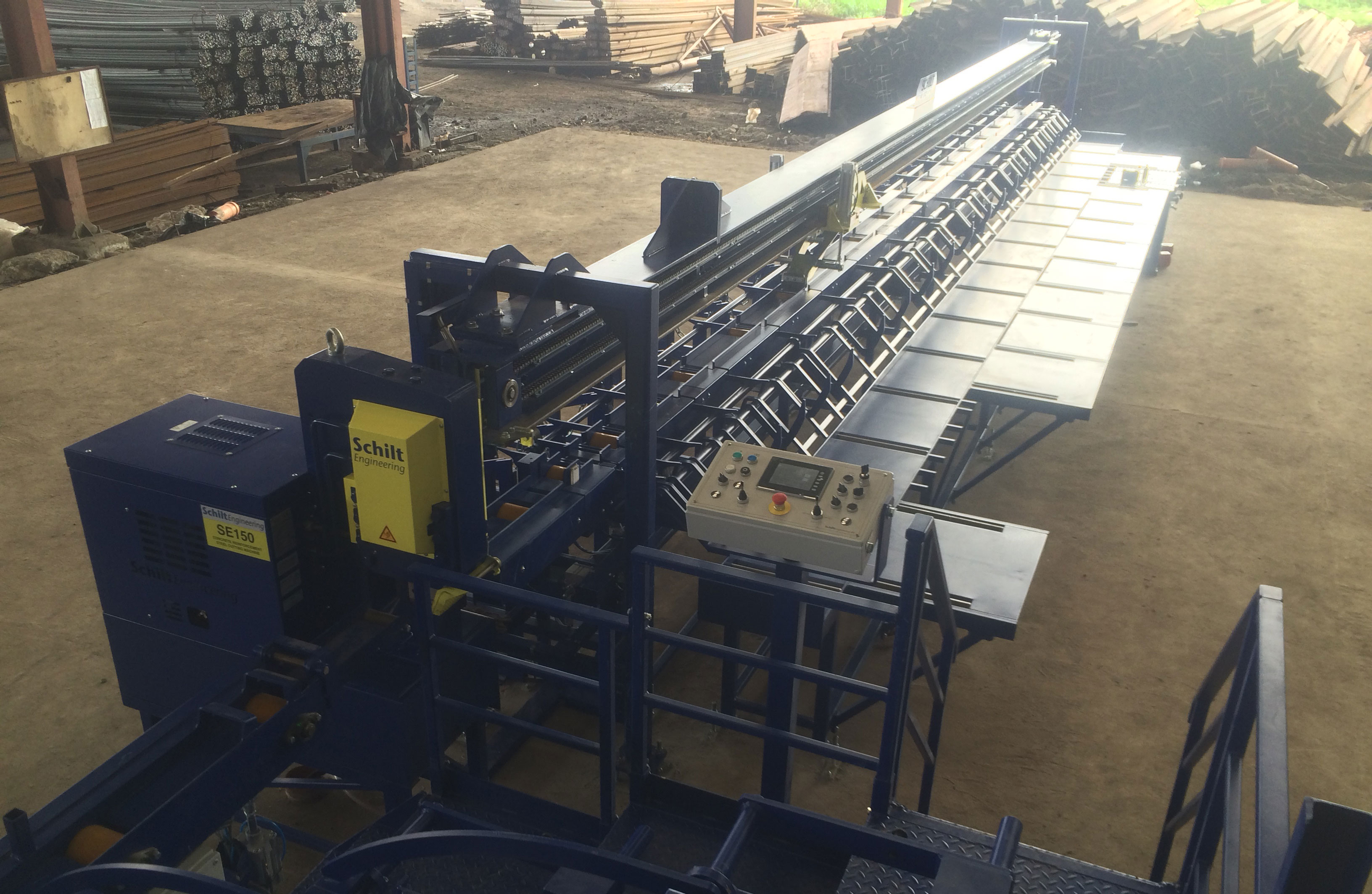

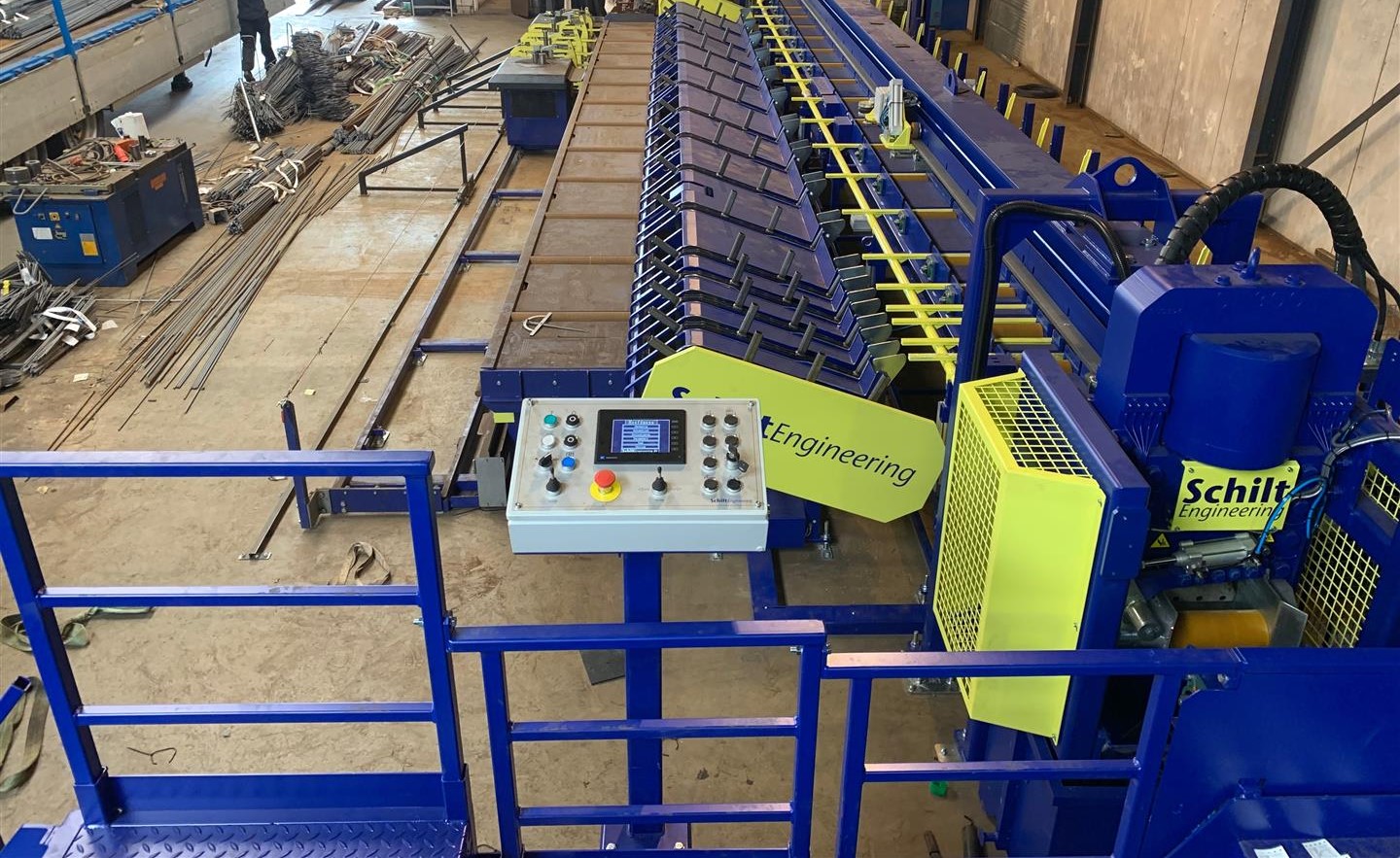

PLC control with touch panel, possibility to set up to 5 different cutting lengths in one cycle

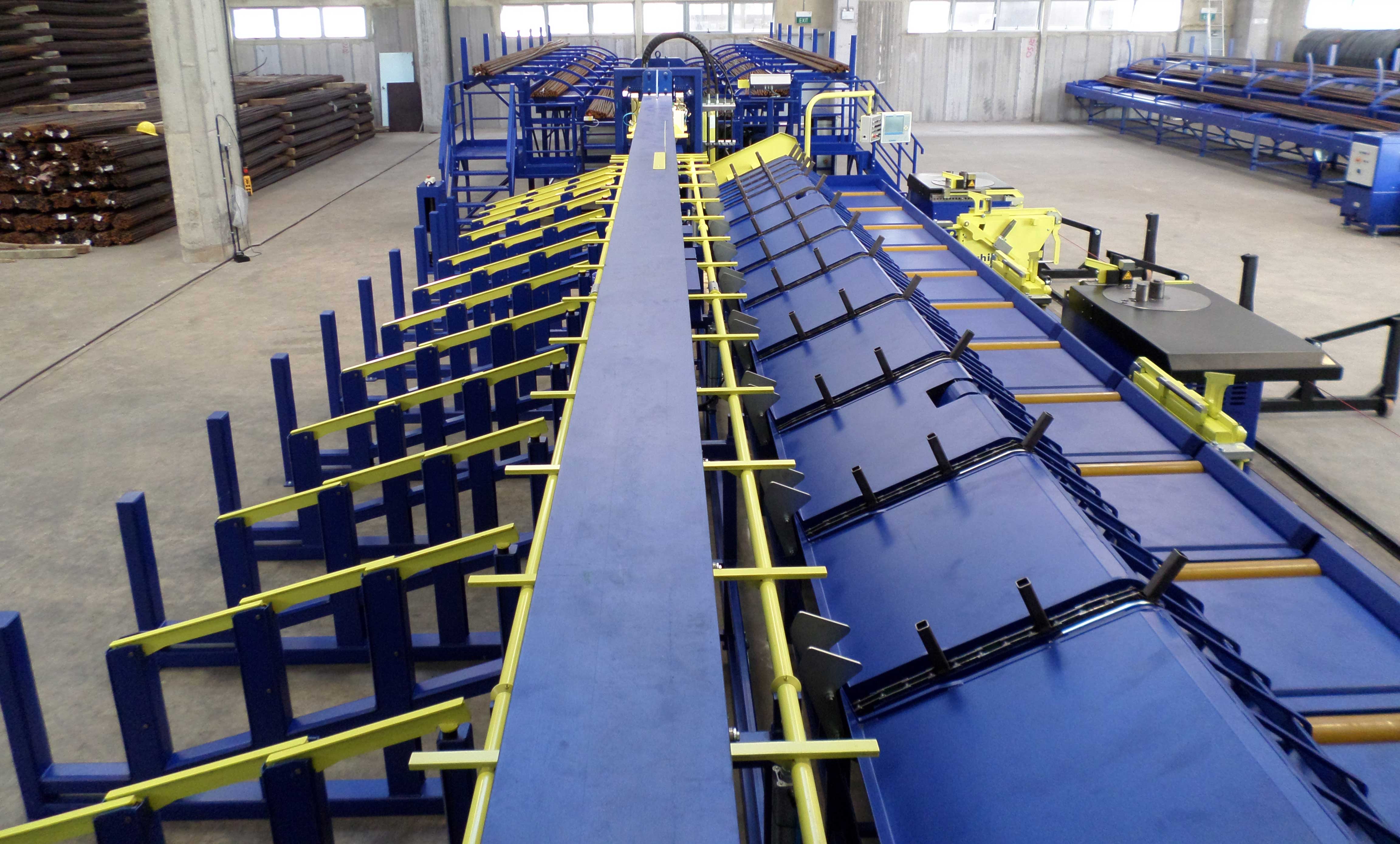

Automatic ejection after cut, at pre-selected position, for maximum utilization of collection boxes

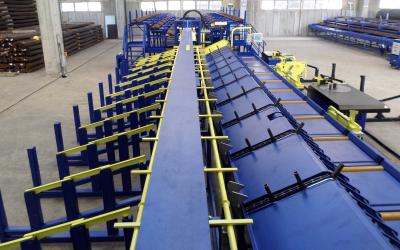

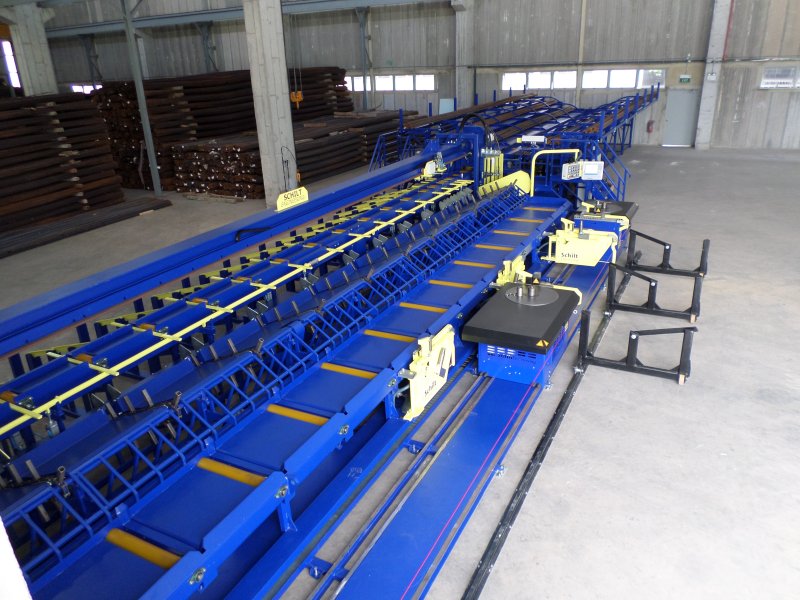

Ejecting to both sides offers better logistics and the possibility of integrating bending table, double bender or extra collecting boxes
Easy operation, low maintenance
Capacity approx. 10 - 20 tons per shift (150mm blade) or approx. 15 - 30 tons per shift (300mm blade)

Brochure

Request information See more

Flexbar-DAE Cutting capacity at 850N/mm²

Bar diameter	Ø8	Ø10	Ø12	Ø14	Ø16	Ø20	Ø25	Ø28	Ø32	Ø40	Ø50
Flexbar-DAE 150 max. number of bars per cut	15	13	11	9	8	6	4	2	2	1	1
Flexbar-DAE 300 max. number of bars per cut	24	22	20	17	15	13	8	7	6	5	2

Flip up part in feed conveyor

Before the shear the feed conveyor can be equipped with a flip up part allowing the operator to pass.

Row of hooks

To load new bars during the cutting cycle a pneumatic operated row of hooks can be provided between the shake out racks and the entry conveyor.

Advanced Windows® control

Operating and alarm functions by visualization program on the PC.
Online service connection for help, parametric changes and debugging through the internet.
Option for data exchange with external software systems.

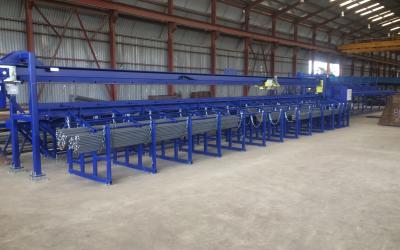

Several logistics

The Flexbar-DAE can be configured with several logistic options to transport and storage bars.

DBS3 Double bending line

The Flexbar-DAE is suitable for logistic connection with the DBS3 double bender. Bars from the shearline can be moved to a rebar (double) bender without usage of a crane.
