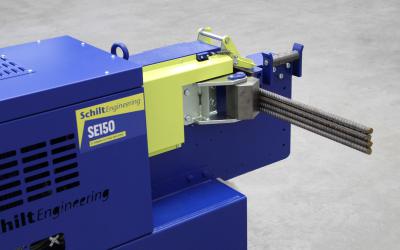

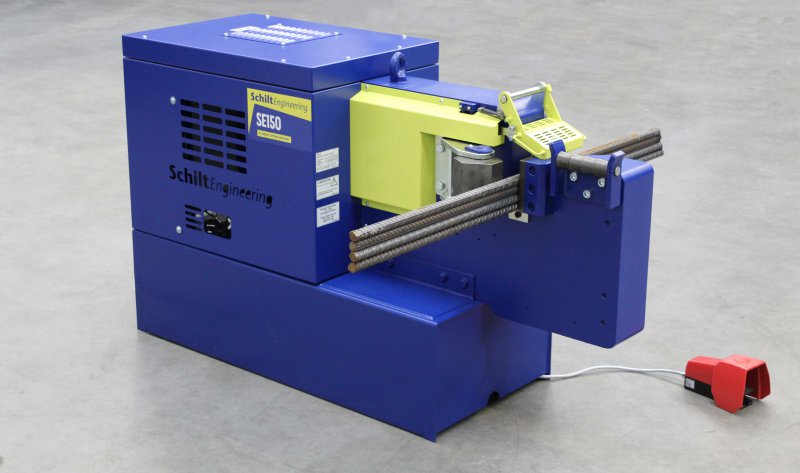

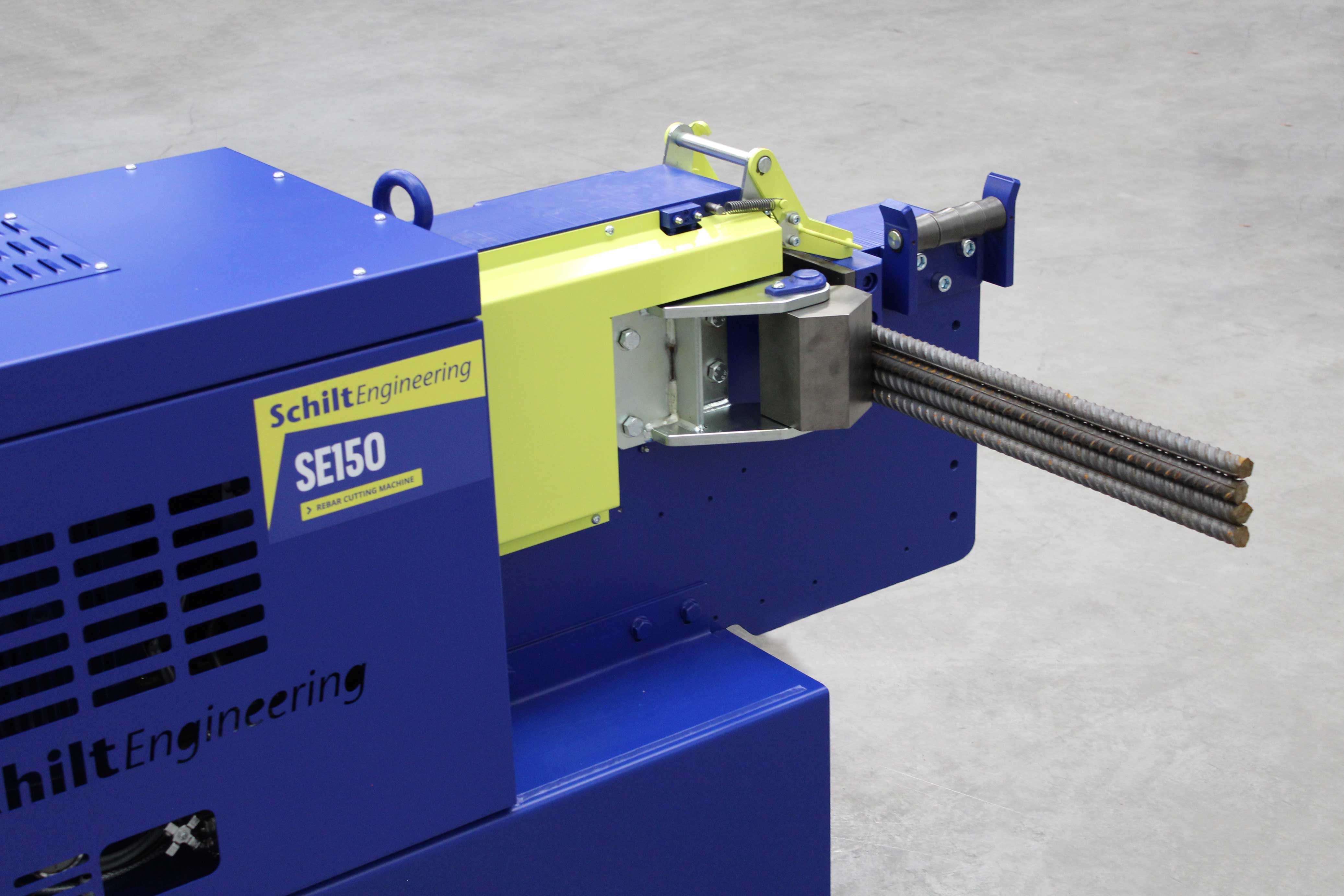

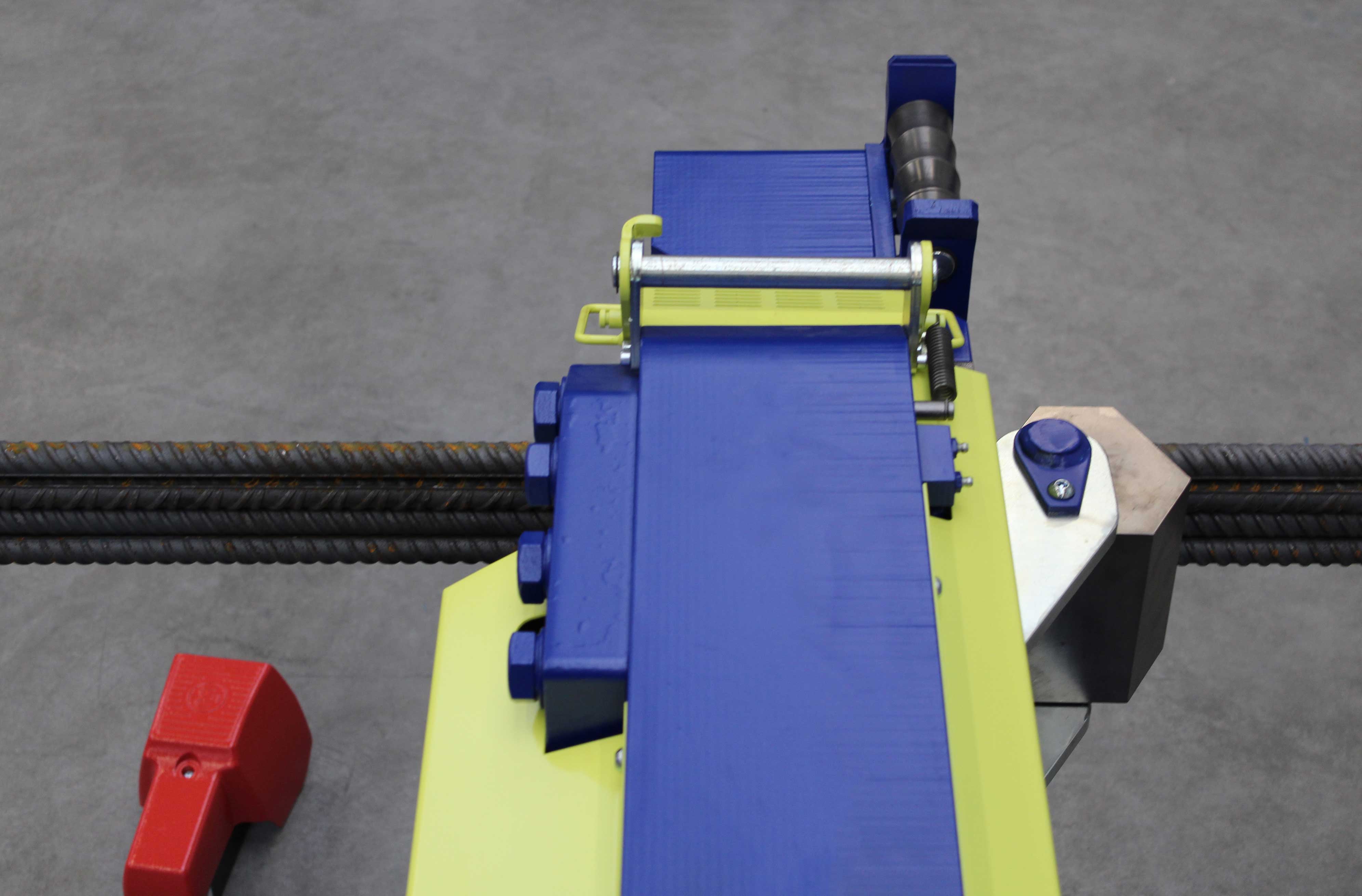

SE150-H Rebar cutting machine

Horizontal cutting machine for bars up to Ø50mm at 850N/mm²

  • Blade width 150 mm
  • Hydraulic cutting up to 14 strokes per minute

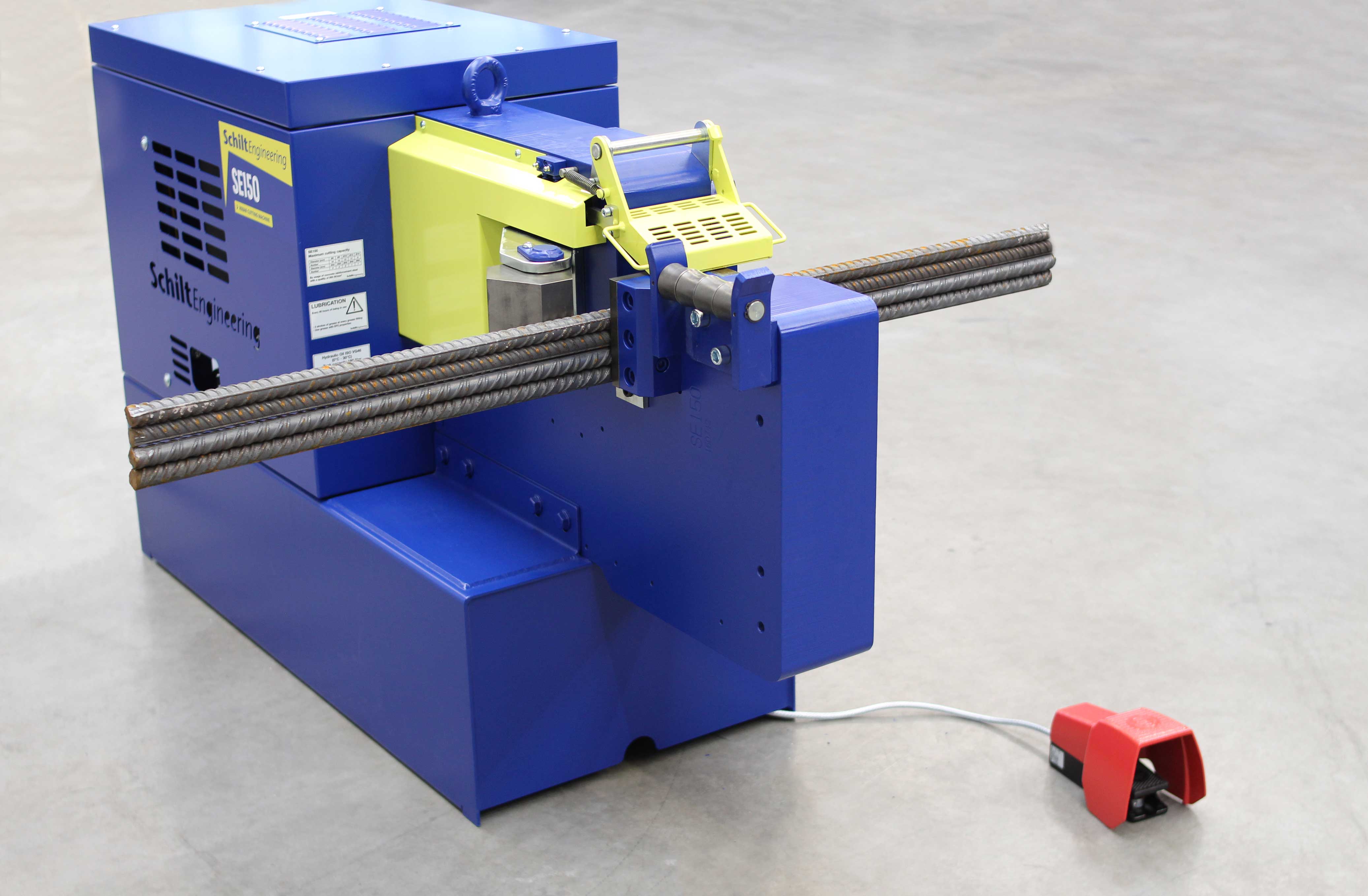

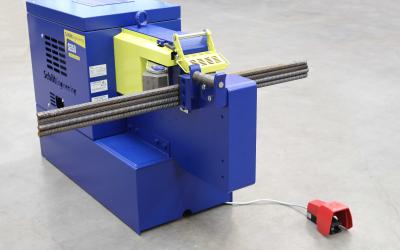

  • Operated with safety foot switch

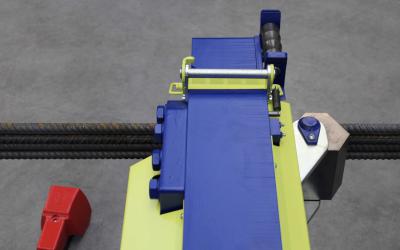

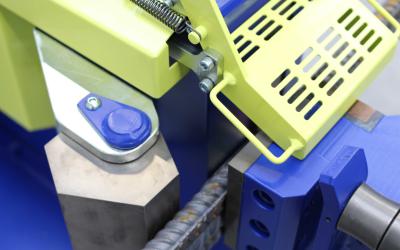

  • Shielded cutting area

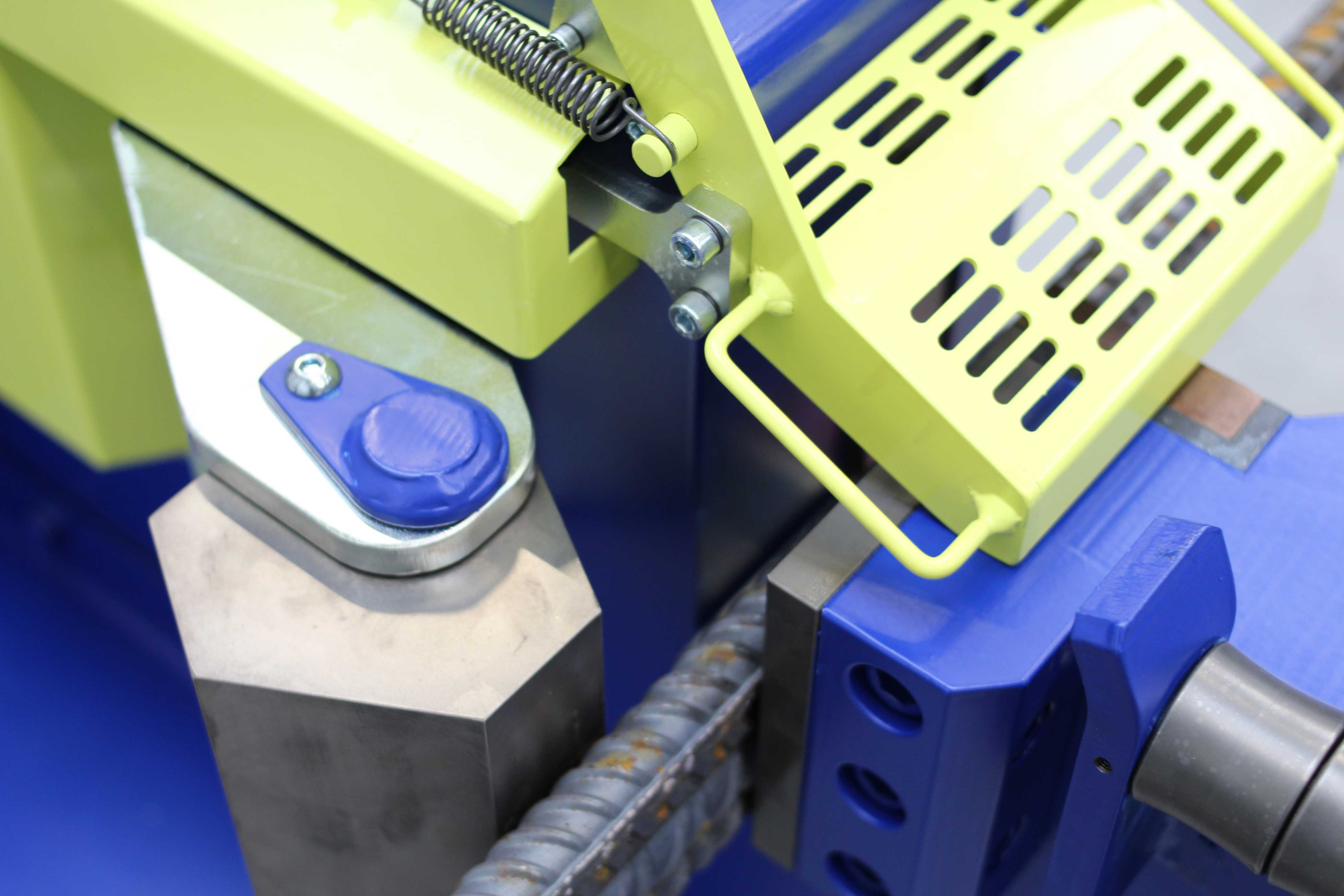

  • Equipped with a turnable counterholder
  • Low-noise level hydraulic pump
  • Also available in a vertical version
Brochure
Request Information See more

SE150-H cutting capacity at 850N/mm²

Bar diameter Ø6 Ø8 Ø10 Ø12 Ø14 Ø16 Ø20 Ø25 Ø28 Ø32 Ø40 Ø50
Max. number of bars per cut 18 15 13 11 9 8 6 4 3 2 1 1
