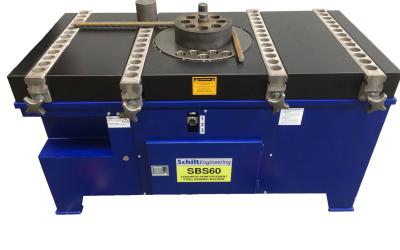

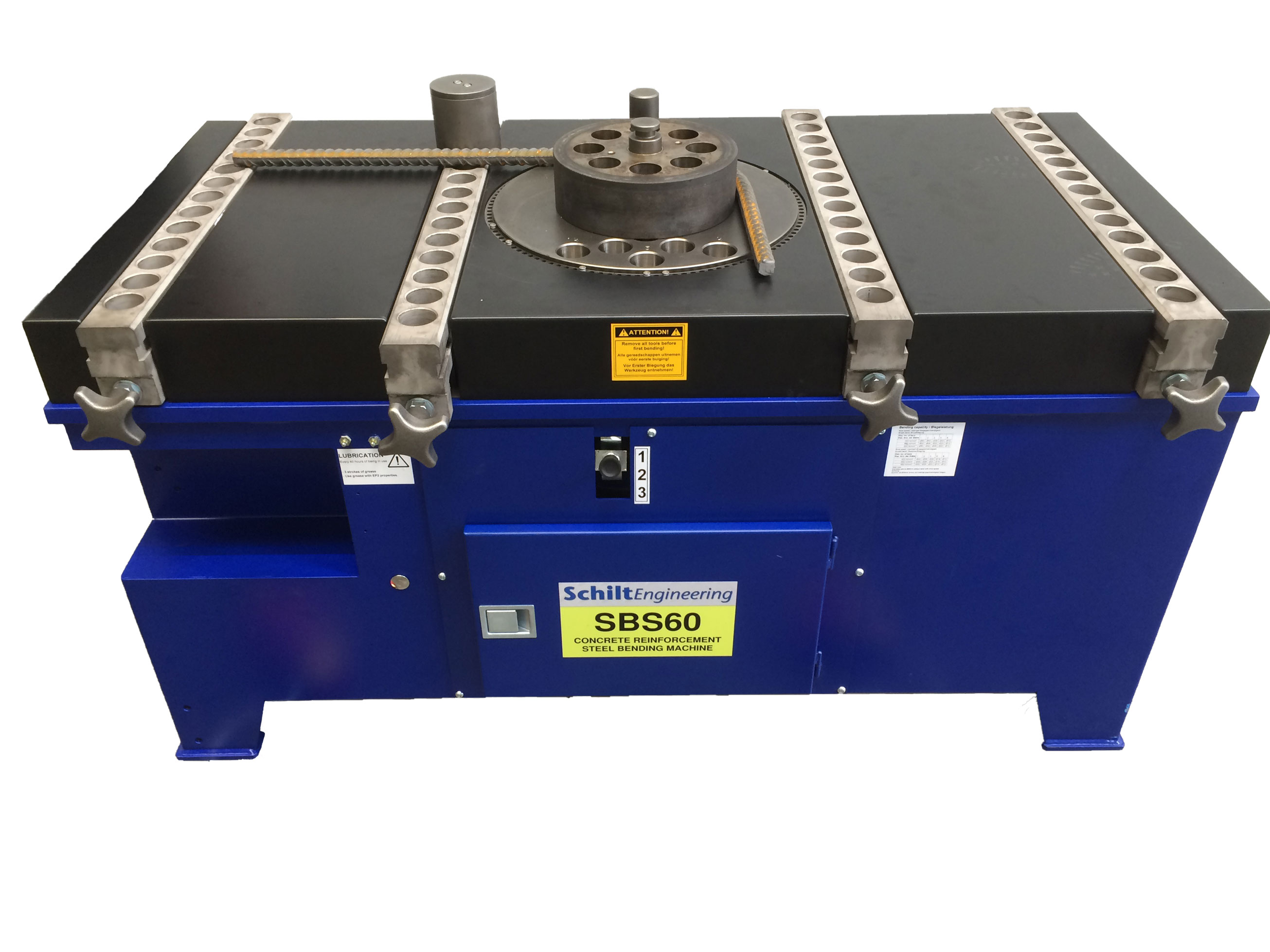

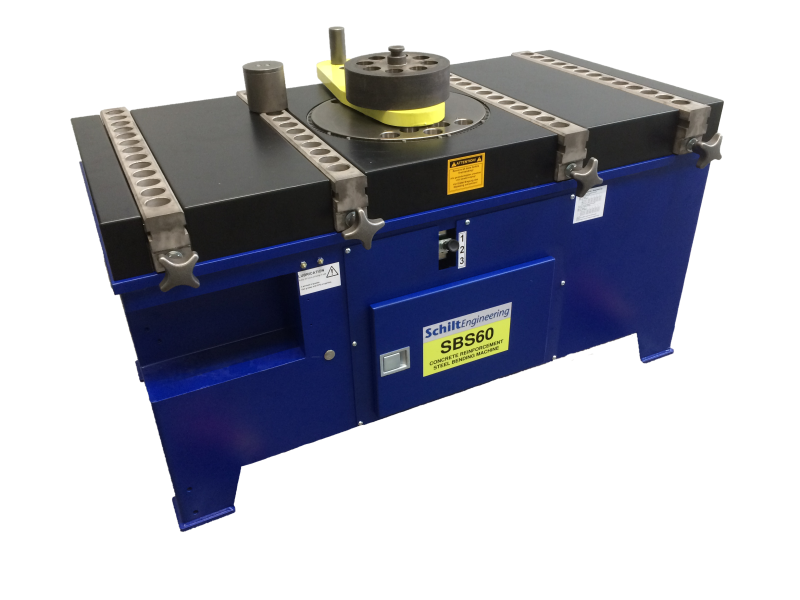

SBS60 Rebar bending machine

Bending machine for bars up to Ø40mm at 850N/mm²

• Angle adjustment by means of indexing pins and angle selection system
• Up to 3 angles can be set for each direction of rotation

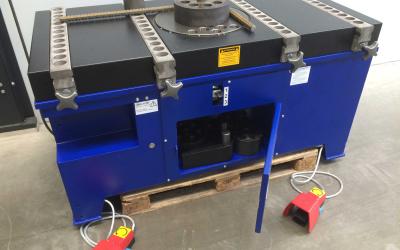

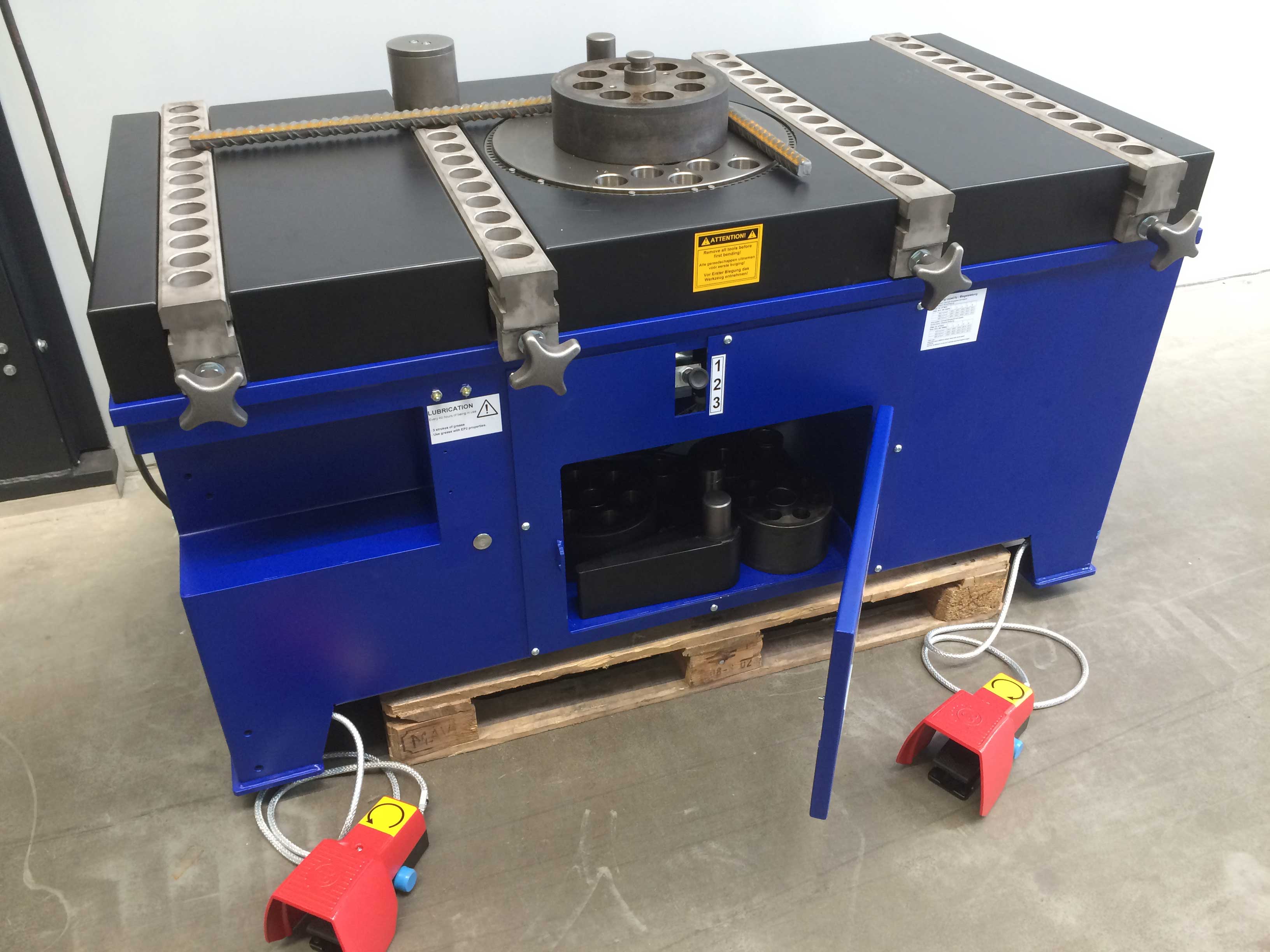

• Foot pedals for operation in both bending directions

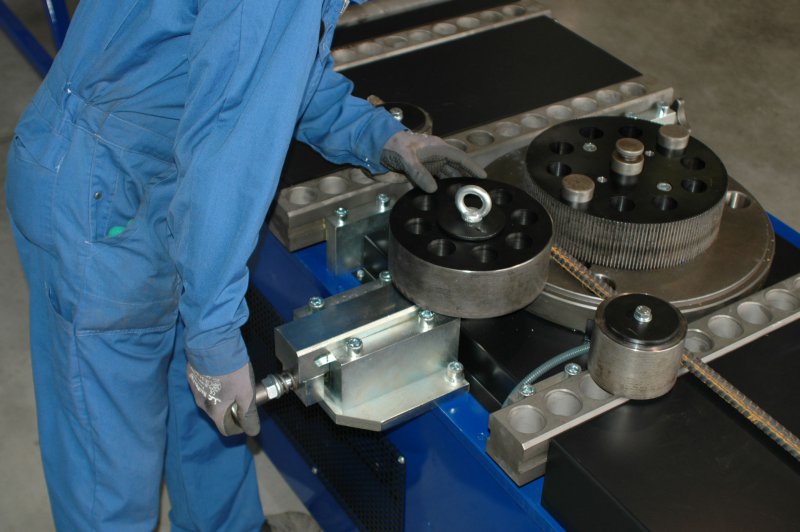

• Radius function for use with optional radius bending set
• Maintenance-free gear, 2 bending speeds
• Equipped with hardened counter rails for perfect fitting of pins

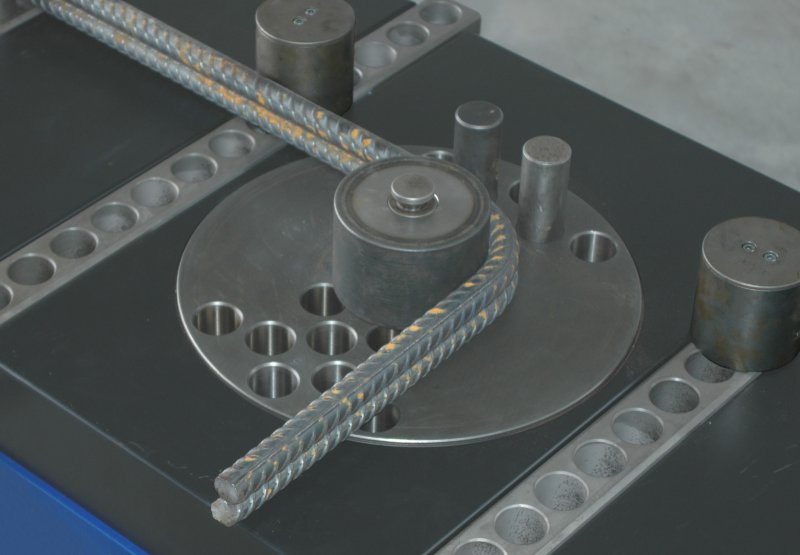

• Complete with tools: bending pins, centre pin and bending rollers in diameter (mm): Ø60, Ø80, Ø100, Ø125, Ø160 and Ø200
• Flat counter holder for stirrups

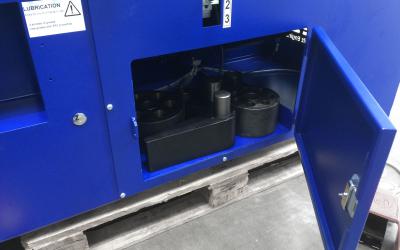

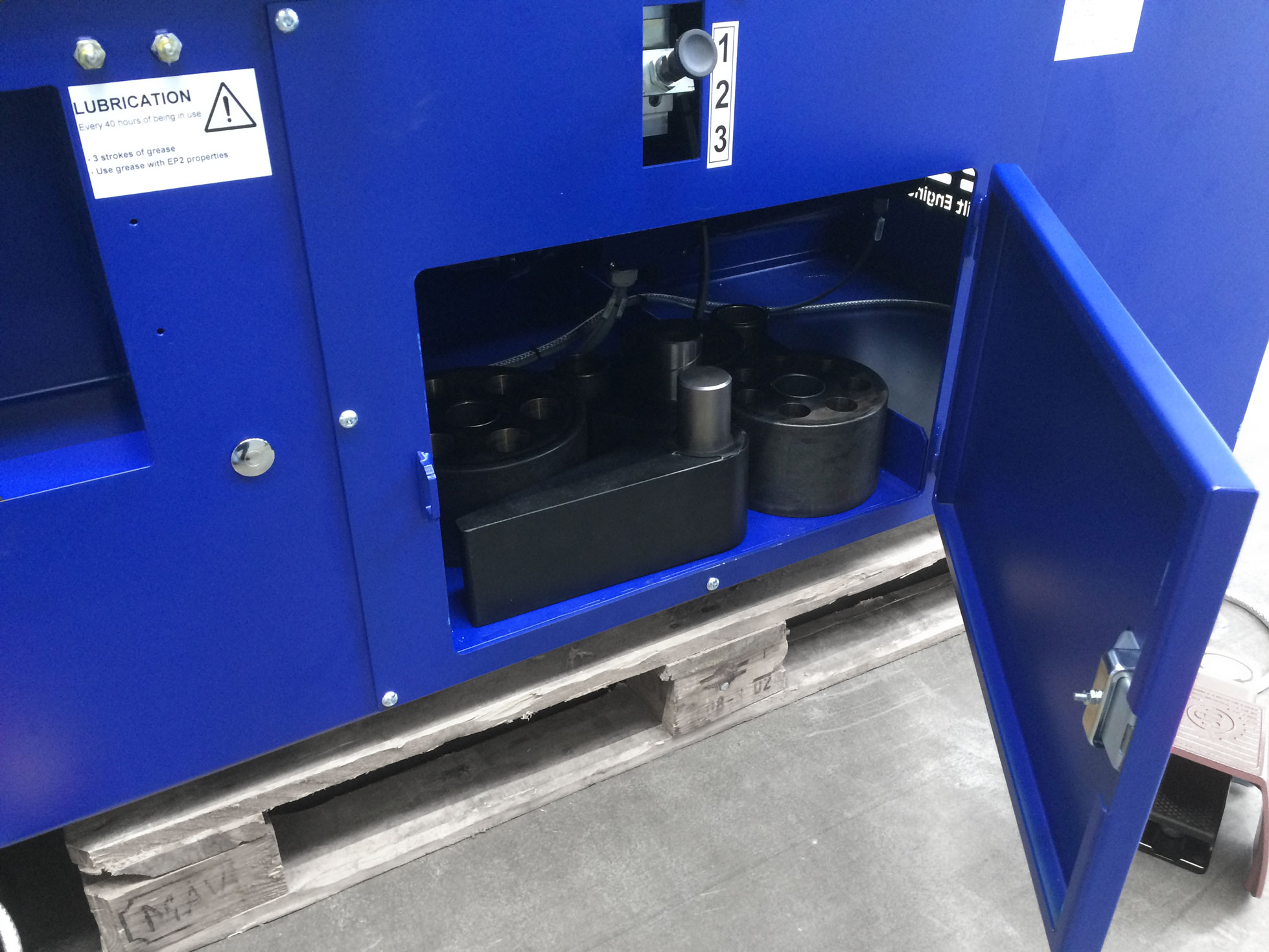

• Internal storage cabinet for bending tools

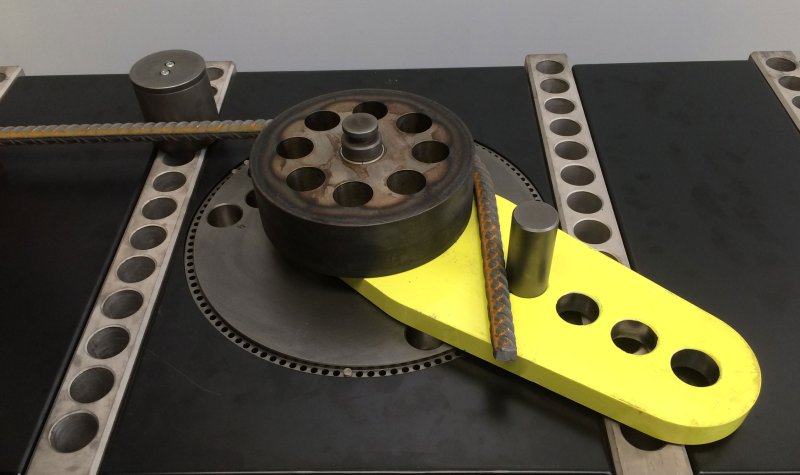

• Optional bending wing for use with large bending rolls
  Further tools and different roll diameters are available on request (available from stock)
