SBC40 Rebar bending machine

SBC40 Rebar bending machine

Bending machine for bars up to Ø32mm at 850N/mm²

Program control (PLC) with touchscreen, bending programs, corrections & counter
Foot pedals for operation in both bending directions
Radius function for use with optional radius bending set
Maintenance-free gear, 2 bending speeds
Equipped with hardened counter rails for perfect fitting of pins
Complete with tools: bending pins, centre pin and bending rollers in diameter (mm): Ø44, Ø50, Ø60, Ø80, Ø100, Ø125 and Ø160
Flat counter holder for stirrups
Internal storage cabinet for bending tools
Further tools and different roll diameters are available on request (available from stock)

Brochure

Information request See more

SBC40 bending capacity

	Ø40	Ø35	Ø32	Ø28	Ø25	Ø20	Ø16	Ø12	Ø10	Ø8
450 N/mm²	1	2	2	3	3	4	6	8	9	11
650 N/mm²	1	1	2	2	3	4	6	8	9	11
850 N/mm²		1	1	2	2	5	6	8	9	11

Options

Roller table

Allows easy movement of longer bars.

Radius bending set

Used for bending large radii.

Bending wing

Allows for bending with larger bending rollers.

Other machines within
Rebar cut and bend machines

SBC60 Rebar bending machine

Bending machine for bars up to Ø40mm at 850N/mm²

SBS30 Rebar bending machine

Bending machine for bars up to Ø25mm at 850N/mm²

SBS40 Rebar bending machine

Bending machine for bars up to Ø32mm at 850N/mm²

SBS60 Rebar bending machine

Bending machine for bars up to Ø40mm at 850N/mm²

SE90-H Rebar cutting machine

Horizontal cutting machine for bars up to Ø32mm at 850N/mm²

SE90-V Rebar cutting machine

Vertical cutting machine for bars up to Ø32mm at 850N/mm²

SE150-H Rebar cutting machine

Horizontal cutting machine for bars up to Ø50mm at 850N/mm²

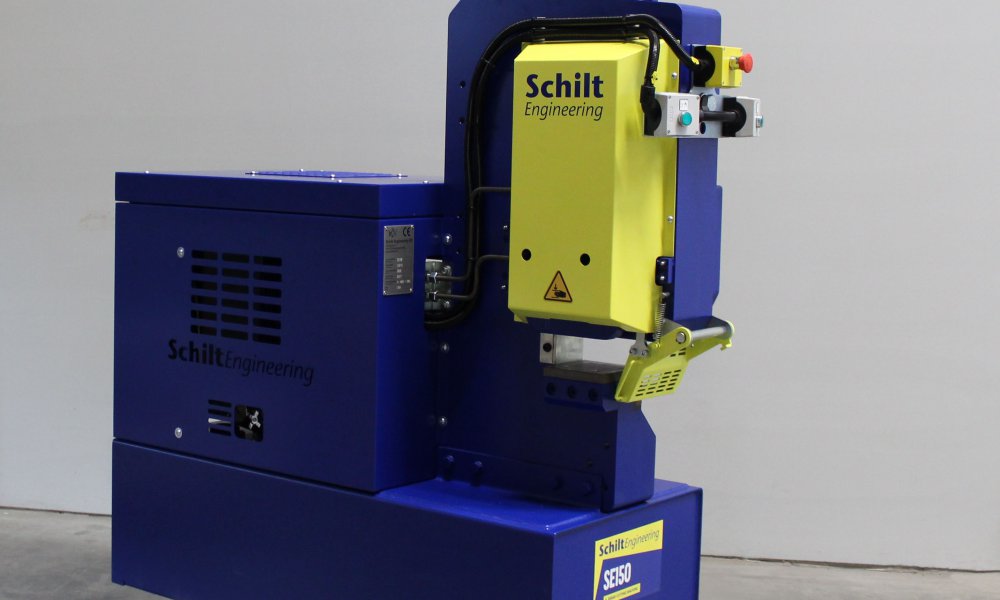

SE150-V Rebar cutting machine
