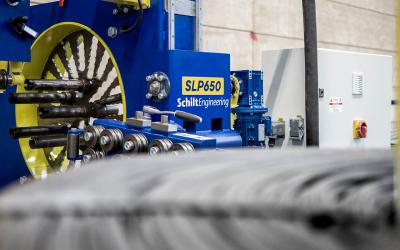

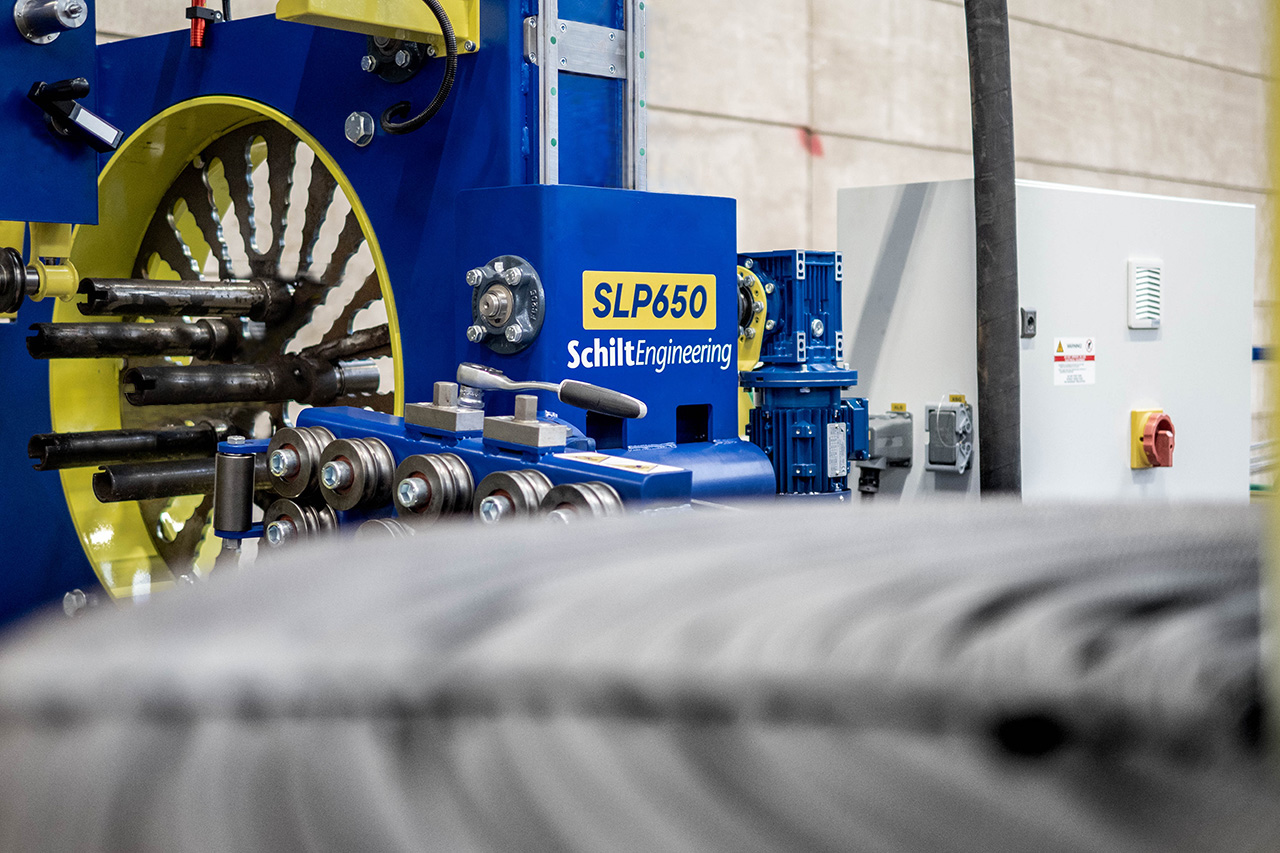

Pile cage machine SLP650

SLP650 Micro-Pile cage machine

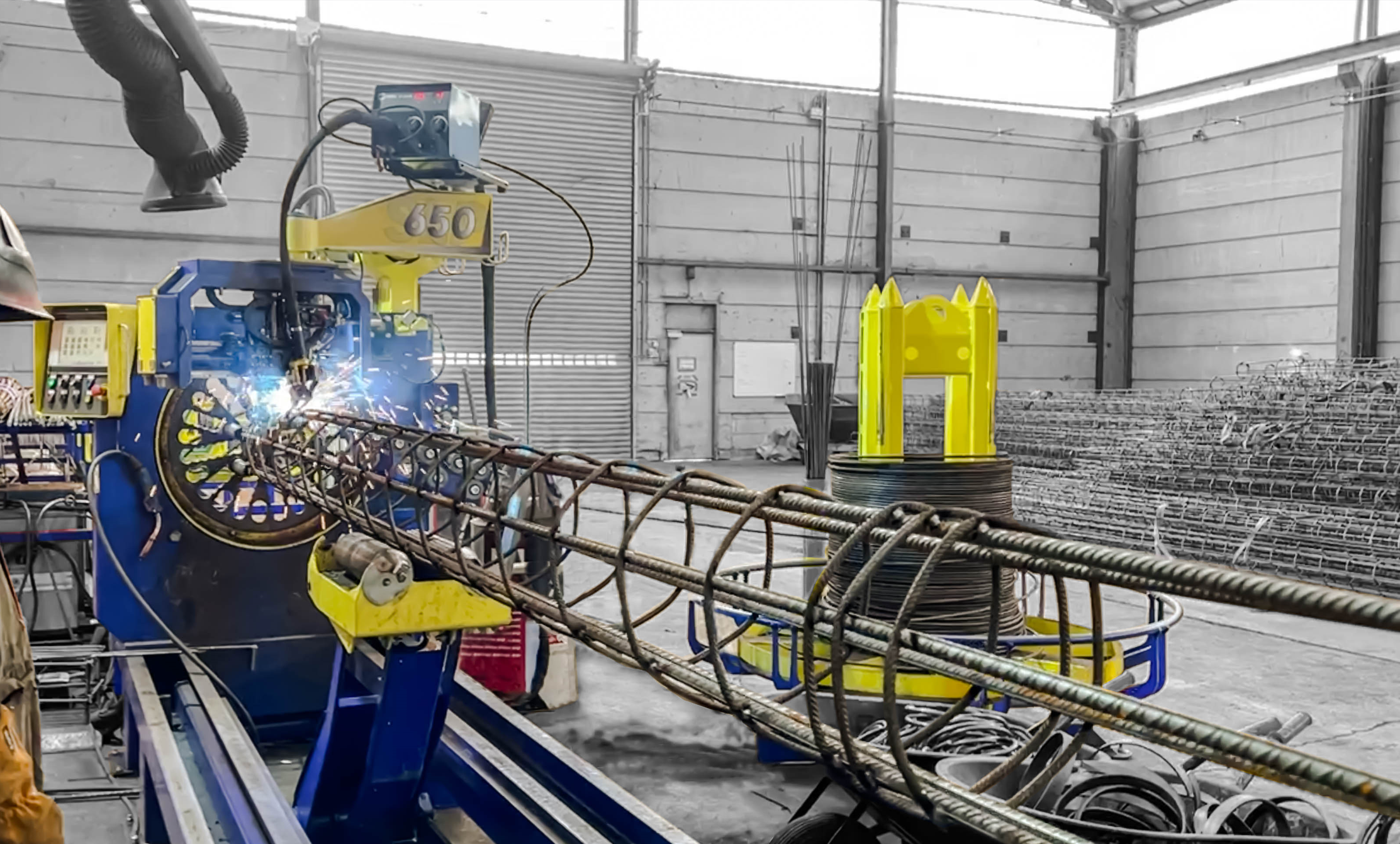

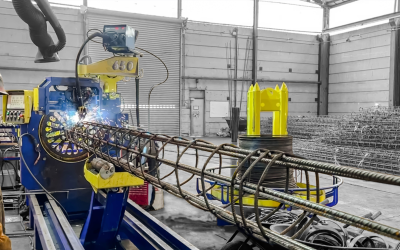

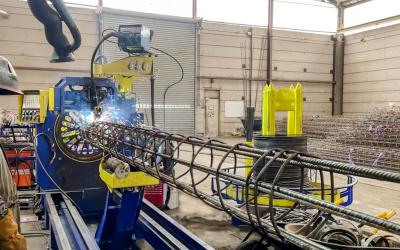

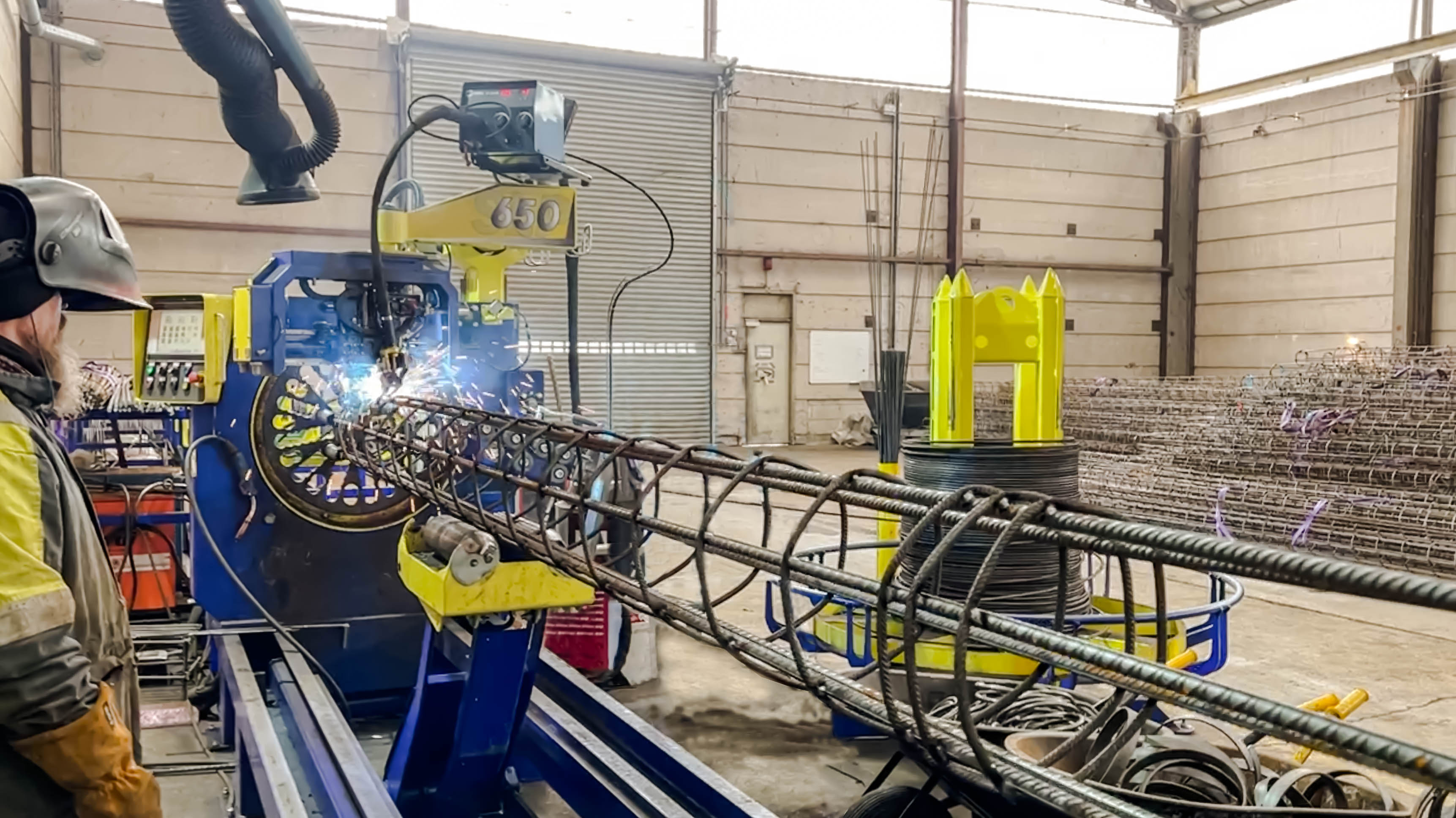

Rebar pile cage welding machine for cages from Ø150mm up to Ø650mm.

Unmatched build quality, heavy machine resulting in very stable weld quality.
Welding time is independently adjustable in relation to the rotational speed.
Improved and new design, rack and pinion drive, hardened components for minimal wear.

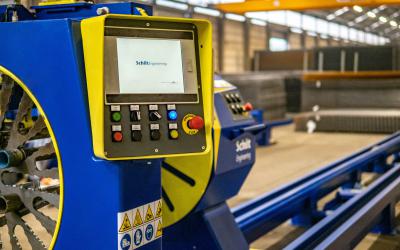

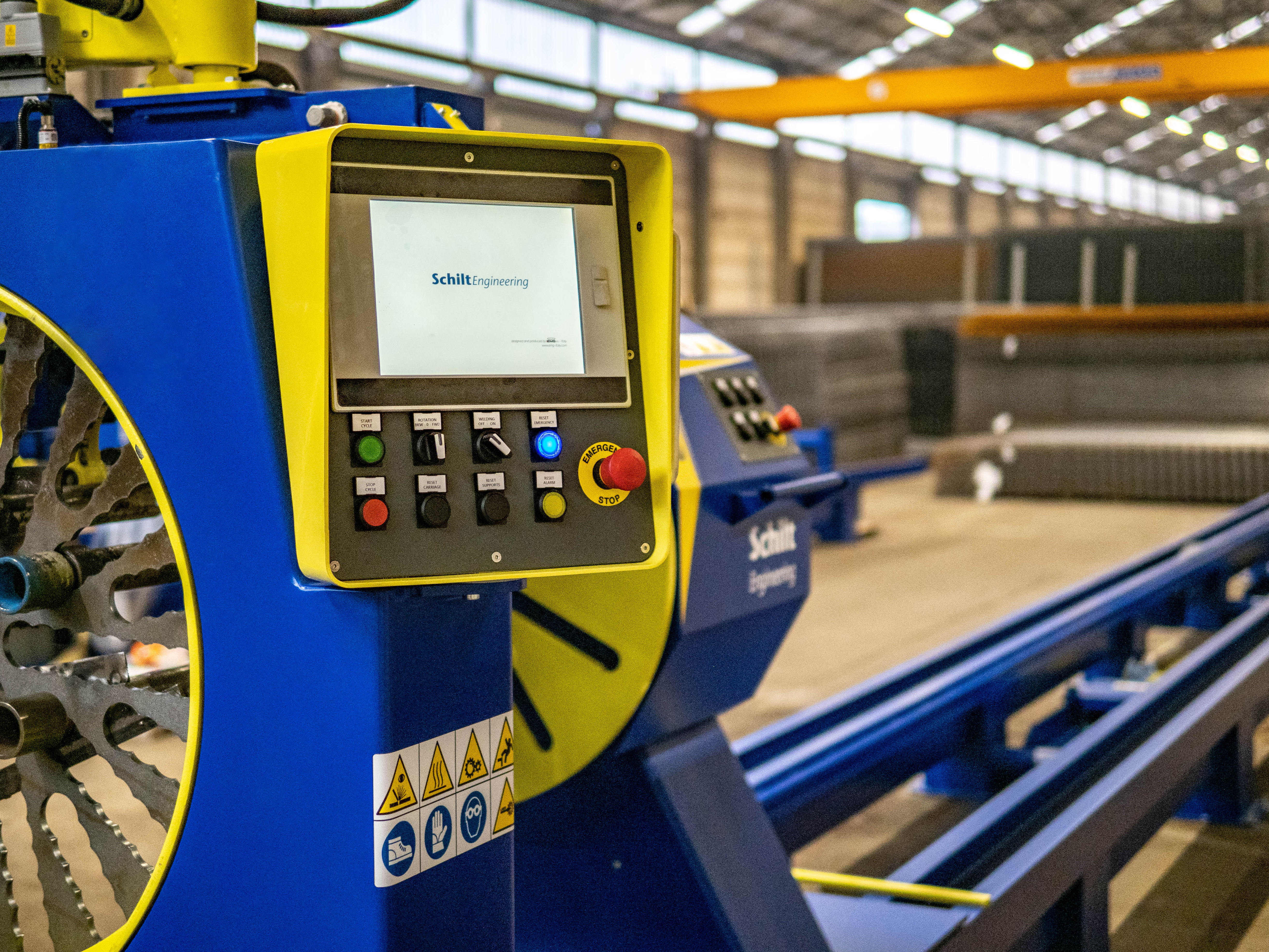

Modern intuitive controls, for quick and easy control and setting of the cages.
Setting aid in the control unit for positioning the clamping bushes, resulting in shorter setting times.
Programmable distances for placing any reinforcement rings.

Request info Tailor-made solution

Technische informatie

Model	SLP-650
Max. cage length	12 or 18 meter
Cage diameter	150 - 650 mm
Diameter of longitudinal bars	12 - 20 mm
Diameter of spiral bars	6 - 12 mm
Spiral pitch	50 - 500 mm

Options

Automatic welding system

Automatic welding of round or rectangular cages. Good welding quality due to accurate rebar detection. The welding time is adjustable.

Mechanical clamping system

Mechanical clamps that activate automatically when the length rod is inserted to shorten the adjustment procedure.

Automated cage removal system

Powered arms that remove the produced cage from the machine and thus increase production.
